Butterfly Valves

Name: Butterfly Valves - Mansour Group Inc
SKU: F-3.11.008
Price: 0.01 CAD
Availability: InStock

SKU/part: #F-3.11.008

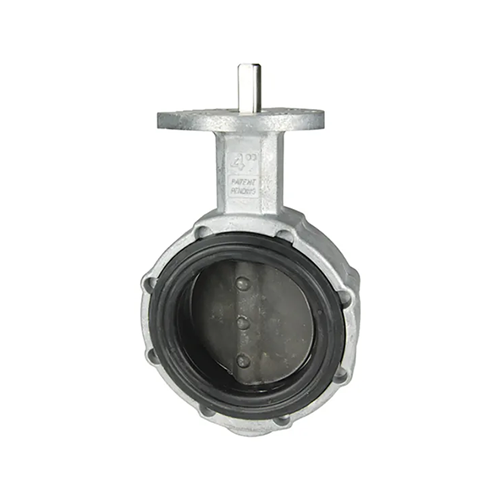

Butterfly valves are commonly used on dry bulk tankers to control the flow of product; designed to be placed between 2 ASME/ANSI 125 or 150 lb. flanges. Made of aluminum bodies with iron or stainless-steel disc. with polymer bushings, Buna-N (Nitrile) seals and seats. The spring, stem and locking lever pin are stainless-steel. and the handle and throttling plate is aluminum.

Features

Rugged cast aluminum
Flange gaskets are not required; the valves elastomer seat also doubles as the flange gasket.
Handles are high strength 713 aluminum, with a retrogressive re-aging process which creates as stronger handle than the cast iron handle which are commonly used in the industry
Iron or stainless discs are standard for superior wear resistance
FDA approved black or white Buna-N seals, -20°F to 275°F (-29°C to 135°C)

Size

Inventory Disclaimer:
Please note that product availability is subject to change and may vary from what is listed online. We recommend calling ahead to confirm stock before visiting our location in person. When you request a quote, a sales representative will confirm current availability and provide updated details.

Product Features

Material: Aluminum body, iron disc

Seal: Black Nitrile rubber

General Applications
The aluminum butterfly valve with an iron disc is primarily used in the Dry Bulk and Food Transport industries to control the flow of dry bulk products from tankers. The aluminum body provides a lightweight, corrosion-resistant solution for these mobile applications, while the iron disc offers superior wear resistance.
