SV70-SPDK

SKU/part: #P-6.3.1.003

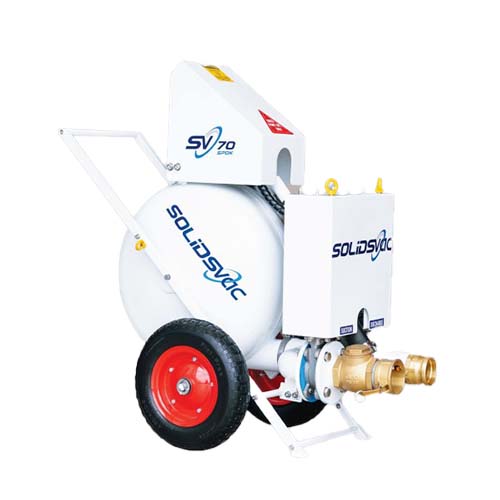

The Solidsvac SV70-SPDK is designed to reliably handle any flowable sludge and slurry and is ideally suited where submersible, centrifugal and diaphragm pumps are not a viable option. Designed to offer the operator a one man vacuum recovery pressure discharge unit capable of recovering and transferring almost any flowable material, the extra heavy duty twin 75mm (3”) suction and discharge knife gate valves deliver outstanding performance in the capture and transfer of heavy flowable sludges with high solids content. 100% air powered, the all new compact, fully automatic, robust and fully mobile SV70-SPDK, generates 22.5”Hg+ of vacuum and can be used in a wide range of applications including mining and industrial.

Extra Heavy Duty
Air Operated – Vacuum Loading
High Solids Content Transfer

Air Consumption Options

Inventory Disclaimer:
Please note that product availability is subject to change and may vary from what is listed online. We recommend calling ahead to confirm stock before visiting our location in person. When you request a quote, a sales representative will confirm current availability and provide updated details.

Product Features
Height: 45″
Width: 25.5″
Length: 48.5″
Weight: 287 lb
Air Inlet: 1/2″ BSP
Suction Inlet: 3″
Discharge Outlet: 3″ or 4′
Displacement Cycle: 17 gal
Operating Pressure: 100 psi Max, 65 psi min
Maximum Solids: 2″
Measured Water Throughput: 106 gpm

General Applications
Solids vac pumps, also known as solids handling vacuum pumps, are used to transfer materials containing solids or sludges, commonly in industries like wastewater treatment, chemical processing, mining, and agriculture.
