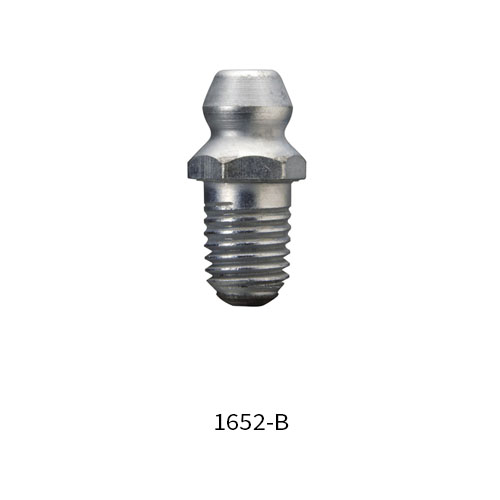

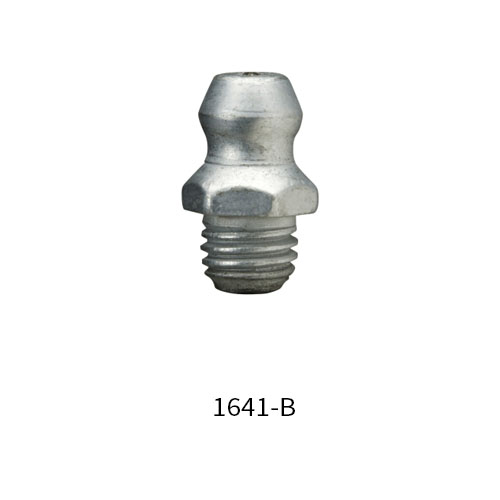

Alemite Taper Thread Fittings
SKU/part: #L-12.2.002
ALEMITE 1/4″-28 Taper Thread Fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4″-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151″, to ensure 75% minimum thread height.
| Product Features |
|---|
| Meets SAE J534:2015 requirements |
| 144 hour salt spray base metal protection |
| 96 hour salt spray coating protection |
| 34.5 MPa (5,000 psi) blowout protection |
| Dirt excluding check ball |
| Trivalent zinc plating |
| RoHS compliant |
| General Applications |
|---|
The Alemite Taper Thread fittings are commonly used in the automotive, truck, and industrial machinery industries. It’s a grease fitting with a 1/4″-28 taper thread and is designed for high-volume lubrication applications. |
| Technical Details |
|---|
