Alemite Pin Type Fitting 1/8″

Name: Alemite Pin Type Fitting 1/8" - Mansour Group Inc
SKU: L-12.3.070
Price: 0.01 CAD
Availability: InStock

SKU/part: #L-12.3.070

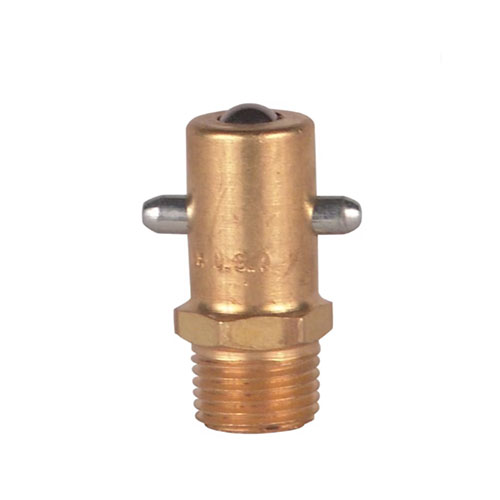

Pin-Style Grease Fitting.

The Alemite 1/8 inch PTF pin-type grease fitting, is designed for use with pin-type grease gun couplers. It features a straight design, a 31/32 inch overall length, a 17/64 inch shank length, and a 7/16 inch hex size. The fitting is made with a dirt-excluding check ball and has a trivalent zinc plating, and it’s engineered to provide a positive locking action and a high-pressure leak-proof seal. Exceeds 72 hour salt spray test.

Clearance price $2.59 Each

Inventory Disclaimer:
Please note that product availability is subject to change and may vary from what is listed online. We recommend calling ahead to confirm stock before visiting our location in person. When you request a quote, a sales representative will confirm current availability and provide updated details.

Product Features
Finish: Zinc
Fitting Thread Size: 1/8″
Fitting Thread Type: PTF
Head Angle: Straight
Hex size: 7/16 Inch
Material: Steel
Overall Height: 31/32 Inch
Shank Length: 17/64 Inch

General Applications
Alemite grease fitting A336, a pin-type fitting, is commonly used in various industries requiring reliable lubrication and leakproof connections. These include automotive, agricultural, construction, and general industrial applications.
